OD, ID and wall thickness of stainless steel pipe fittings

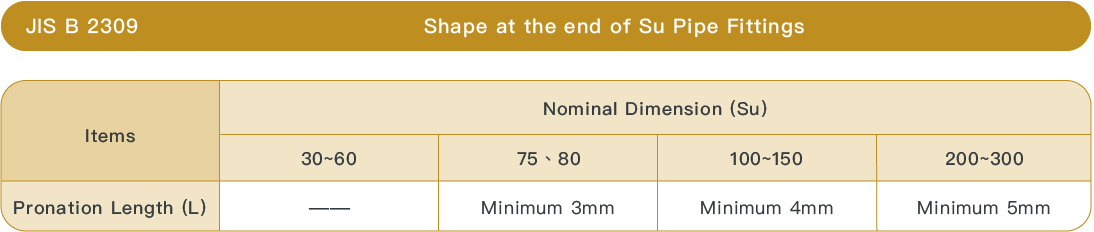

JIS B 2309 Dimension Chart
JIS B 2309 Table of Specification

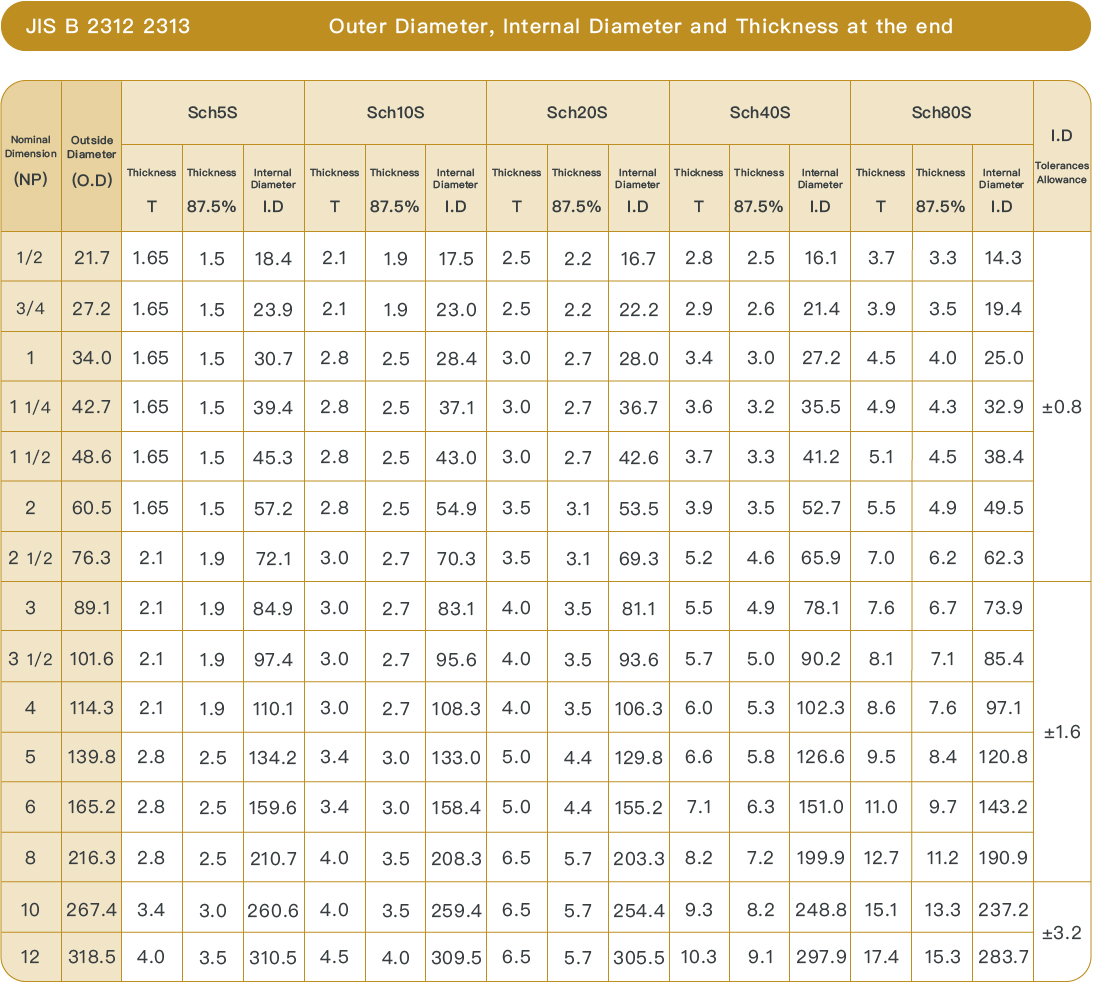

JIS B 2312 / 2313 Dimension Chart
JIS B 2312 / 2313 Table of Specification
